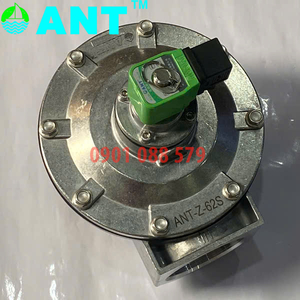

Van giũ bụi ANT-Z-62S

(1 đánh giá)

Mã sản phẩm : ANT-Z-62S

Xuất xứ : ANT - Trung Quốc

Bảo hành : 06 tháng

Van giũ bụi ANT-Z-62S điện áp 220V / 24V và 110V dùng cho ống phi 73mm

Hotline: 0901 088 579

Mail: ltnguyen.ant@gmail.com

Gọi: 0901 088 579

Chi tiết

Thông số kỹ thuật của van giũ bụi ANT-Z-62S

Model	ANT-Z-62S

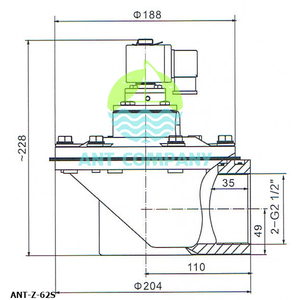

Size	2-1/2''
Kiểu kết nối	Ren trong
Điệp áp cuộn coil	220VAC / 24VDC / 110VAC
Tiêu chuẩn bảo vệ	IP65

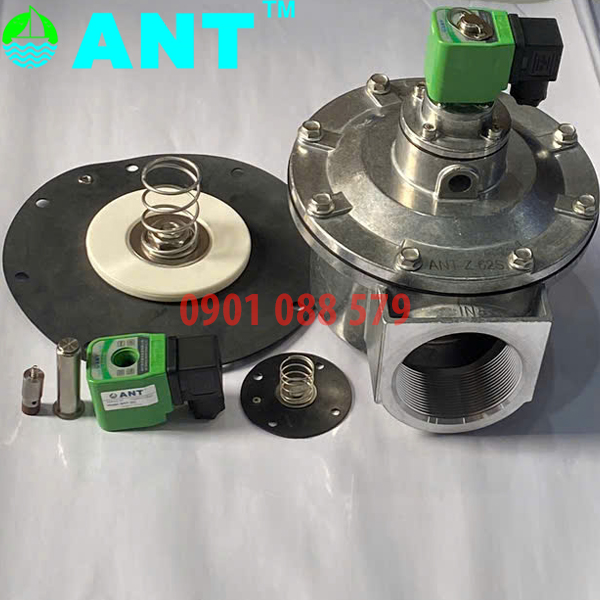

Phụ kiện thay thế	Cuộn coil, ty dẫn hướng coil, màng van

Model	Port Size (Inch)	Port Size (mm)	Diaphragm Number	Body Material	Working Pressure Range	Coil Voltage
ANT-Z-20	3/4''	27mm	1	Aluminum Alloy	0.1 to 0.8 MPa (Recommended pressure 0.2-0.6MPa)	110VAC, 220VAC, 24VDC
ANT-ZM-20	3/4''	27mm	1	Aluminum Alloy	0.1 to 0.8 MPa (Recommended pressure 0.2-0.6MPa)	110VAC, 220VAC, 24VDC
ANT-Z-25	1''	34mm	1	Aluminum Alloy	0.1 to 0.8 MPa (Recommended pressure 0.2-0.6MPa)	110VAC, 220VAC, 24VDC
ANT-ZM-25	1''	34mm	1	Aluminum Alloy	0.1 to 0.8 MPa (Recommended pressure 0.2-0.6MPa)	110VAC, 220VAC, 24VDC
ANT-Y-25	1''	34mm	1	Aluminum Alloy	0.1 to 0.8 MPa (Recommended pressure 0.2-0.6MPa)	110VAC, 220VAC, 24VDC
ANT-Z-40S	1-1/2''	48mm	2	Aluminum Alloy	0.1 to 0.8 MPa (Recommended pressure 0.2-0.6MPa)	110VAC, 220VAC, 24VDC
ANT-ZM-40S	1-1/2''	48mm	2	Aluminum Alloy	0.1 to 0.8 MPa (Recommended pressure 0.2-0.6MPa)	110VAC, 220VAC, 24VDC
ANT-Y-40S	1-1/2''	48mm	2	Aluminum Alloy	0.1 to 0.8 MPa (Recommended pressure 0.2-0.6MPa)	110VAC, 220VAC, 24VDC
ANT-Z-50S	2''	60mm	2	Aluminum Alloy	0.1 to 0.8 MPa (Recommended pressure 0.2-0.6MPa)	110VAC, 220VAC, 24VDC
ANT-Y-50S	2''	60mm	2	Aluminum Alloy	0.1 to 0.8 MPa (Recommended pressure 0.2-0.6MPa)	110VAC, 220VAC, 24VDC
ANT-Z-62S	2-1/2''	73mm	2	Aluminum Alloy	0.1 to 0.8 MPa (Recommended pressure 0.2-0.6MPa)	110VAC, 220VAC, 24VDC
ANT-Y-62S	2-1/2''	73mm	2	Aluminum Alloy	0.1 to 0.8 MPa (Recommended pressure 0.2-0.6MPa)	110VAC, 220VAC, 24VDC
ANT-Z-76S	3''	90mm	2	Aluminum Alloy	0.1 to 0.8 MPa (Recommended pressure 0.2-0.6MPa)	110VAC, 220VAC, 24VDC
ANT-Y-76S	3''	90mm	2	Aluminum Alloy	0.1 to 0.8 MPa (Recommended pressure 0.2-0.6MPa)	110VAC, 220VAC, 24VDC
